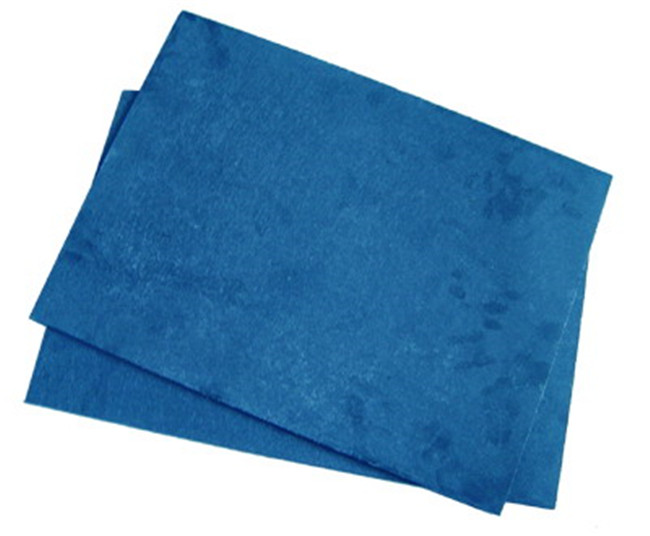

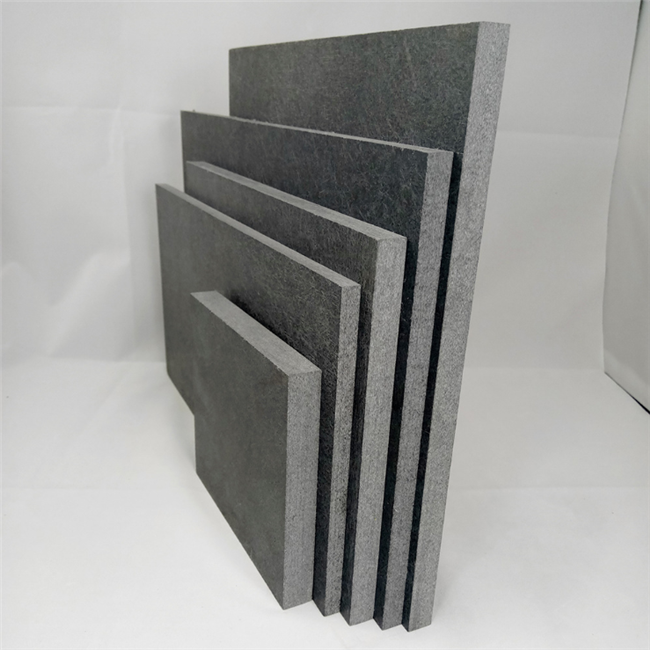

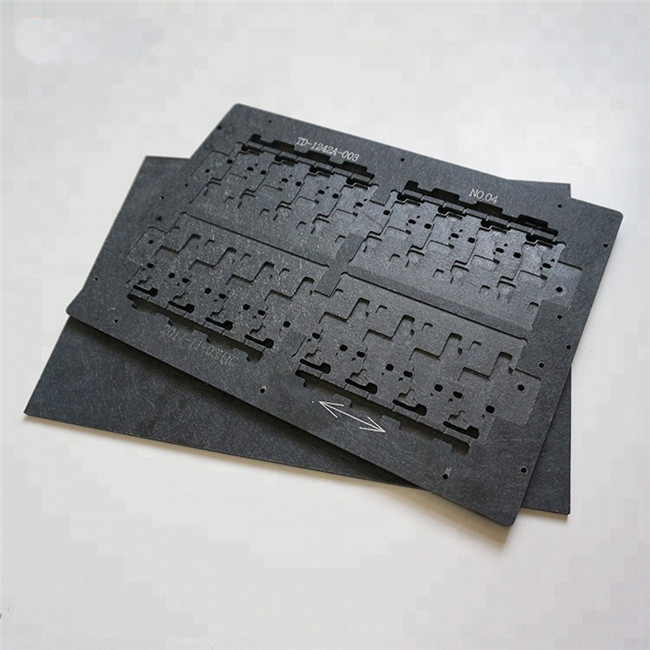

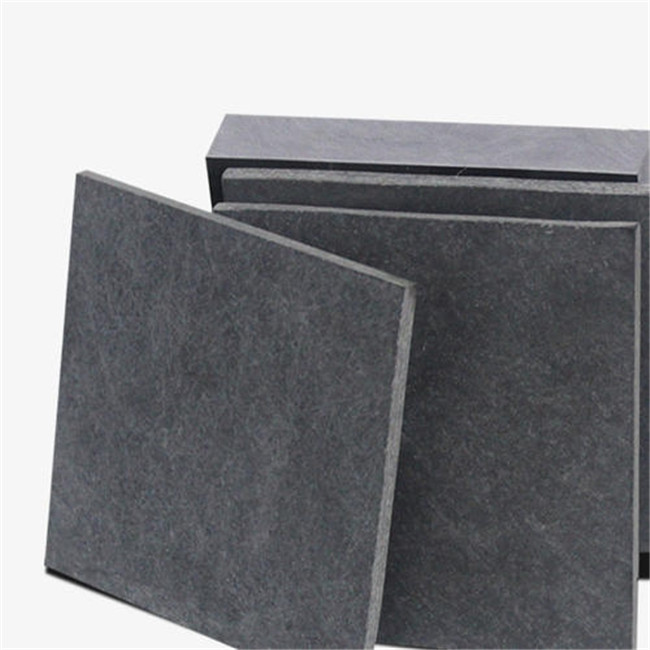

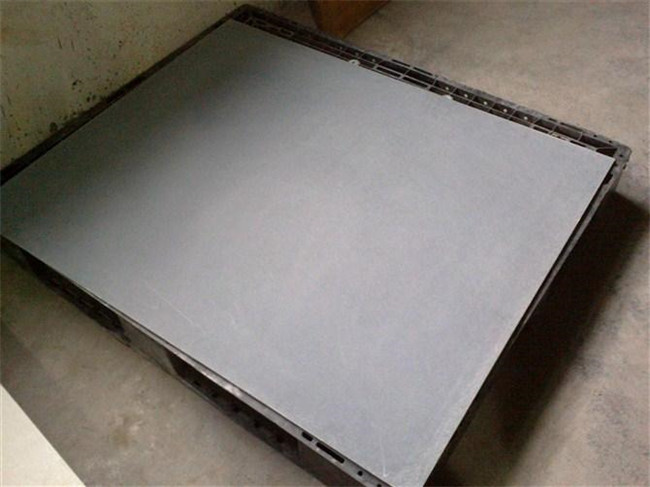

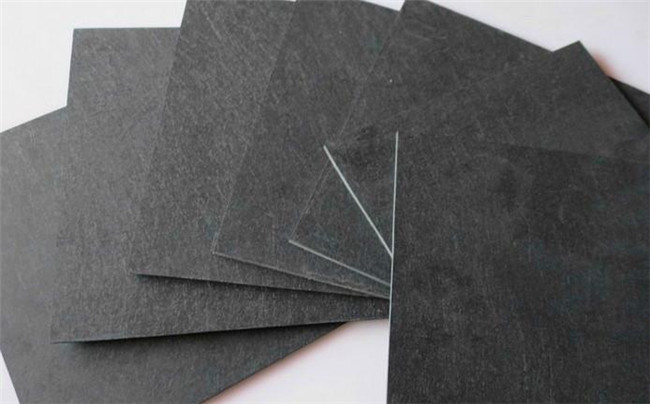

防靜電合成石是由玻璃纖維和環氧樹脂等制成的復合材料。在260-280℃的間接高溫環境中具有較好的尺寸穩定性、耐腐蝕性、低導熱性、防靜電性、不易燃性。適合SMT波峰焊工藝中的焊接保護載具之用。使用中易加工、不破裂、不脫層、不起毛、不刺激人體，可按使用規格任意裁切鉆孔開槽，易于在CNC機床的快速加工和避免過度損傷刀具。我們是國內具備全自動生產線的制造企業，產品批次長期穩定，避免了手工制造的氣孔、變形、開層等不良問題。

Solder pallet material are composite material made of glass fiber and epoxy resin.In the indirect high temperature environment of 260-280℃, it has good dimensional stability, corrosion resistance, low thermal conductivity, anti-static and non-flammability. Suitable for soldering protection in SMT wave soldering process, easy to process, no cracking, no peeling, no burr and no irritation to human body.Easy to process on CNC lathe and do less harm to the cutters.We have the unique automatic production line in China,therefore steady production can be assured,that can also avoid problems like porosity ,transformation and layer separation. All these problems are easily seen in handmade production.

我們的材料具有一些特性：

These materials offer the following features:

（1）抗腐蝕性：源于技術研發設計的優勢，合成石耐腐蝕性在中國制造同類產品中名列前茅，有效延長了載具的使用壽命。

（2）加工后毛刺極少，制品細膩，加工細節部位不易分層斷裂，加工時人身無刺癢感：

（3）ESD均勻穩定，板面無氣孔、雜質，纖維分布均勻細膩。

（1）Corrosion Resistance：Based on our own intellectual property and R&D Capability.Our composite sheets have great advantage over that of other domestic producers. The carrier life has been prolonged effectively.

（2）Less Burr after machining，not easy to be separated and break on the processing position.

（3）Uniform ESD,No porosity,No impurity,Uniform fiber distribution.

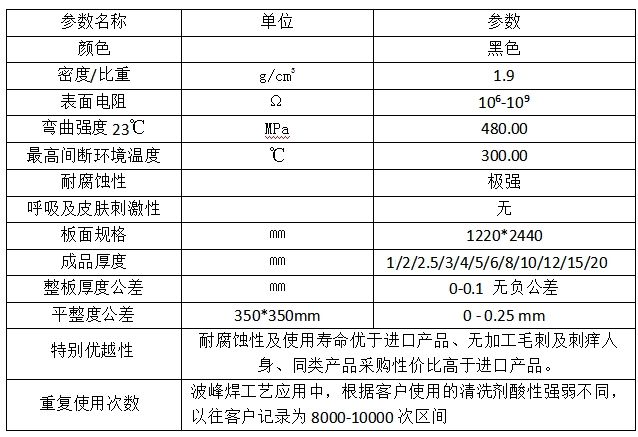

產品技術性能參數：
